90 Degree Elbow – Black Pipe Foot Rail – 2″ ID

If you want your atmosphere to have a certain industrial elegance, it’s hard to beat the utility of black industrial pipe bar foot rest. Install a Black Pipe Foot Rail in your space with the help of this 90° elbow fitting.

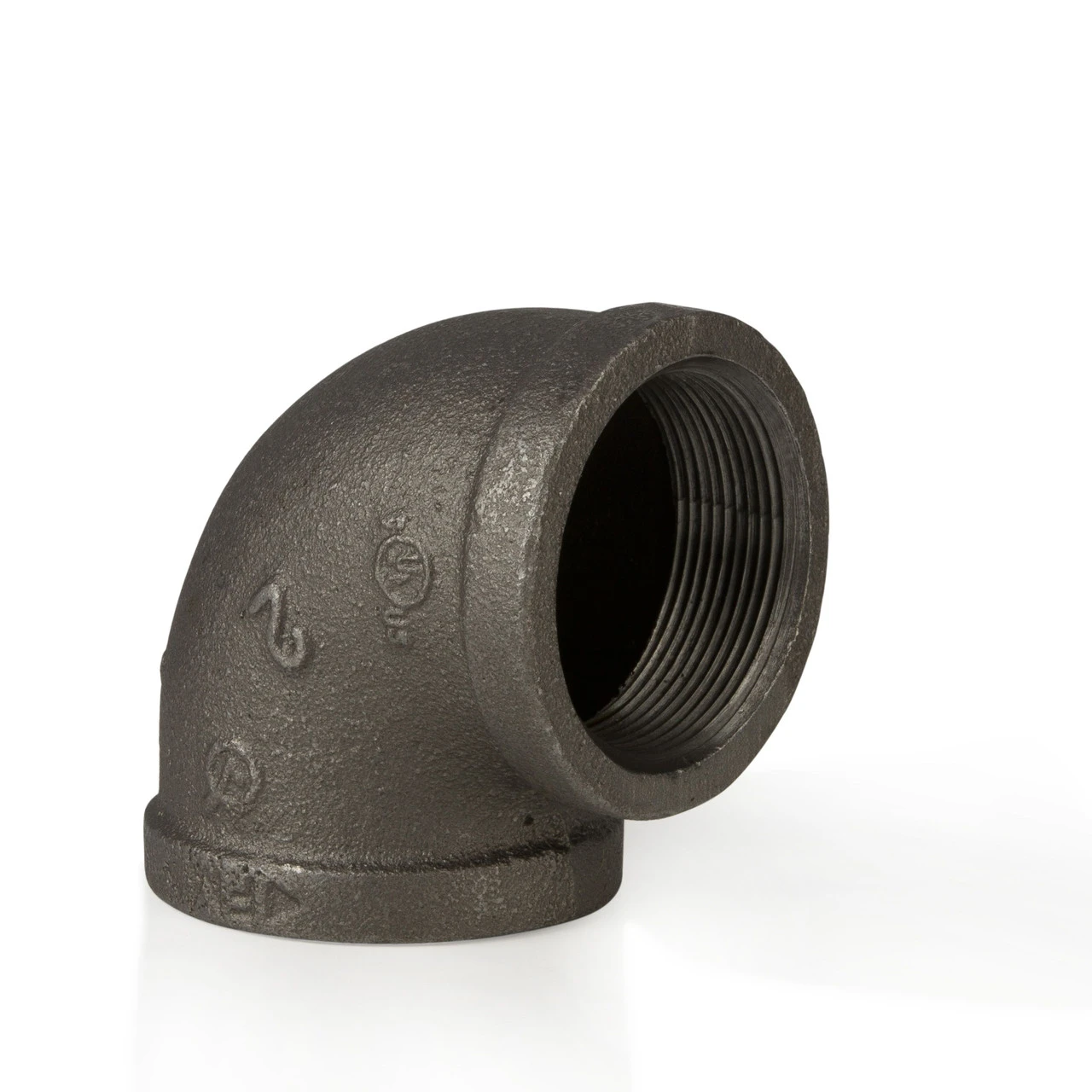

This elbow fitting, made of the same black metal as the pipe itself, attaches to while a can be screwed into the other end. It can also be used to turn corners along the facing of your bar.

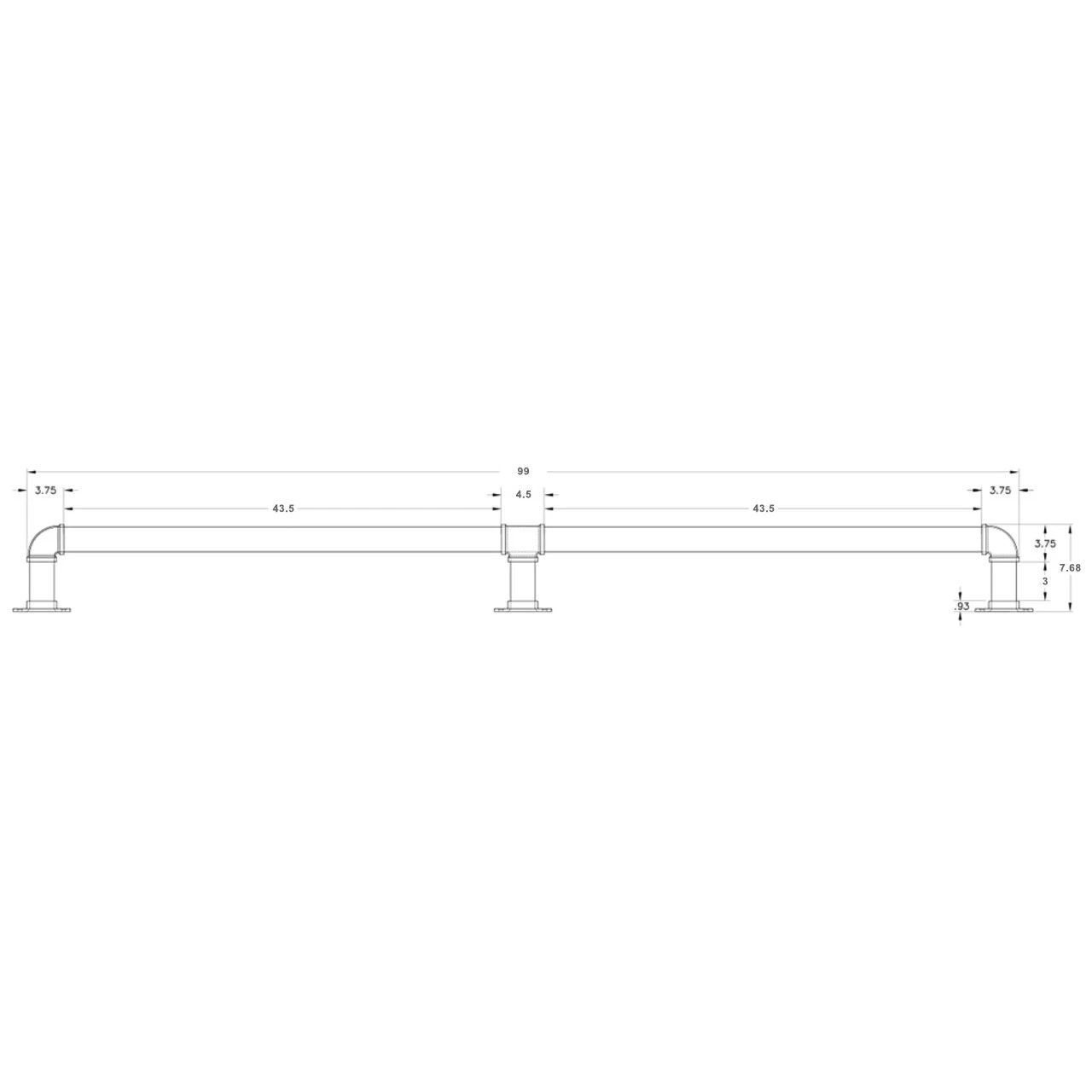

Simply insert a threaded end of black pipe into either end of the fitting and then screw as tightly as desired. The connector piece can be screwed in all the way to the fitting or left with some threading exposed based on how high you want your bar foot rail tubing to sit off the ground. It will present a sturdy bar foot rest anywhere from 4″-7″ off the ground.

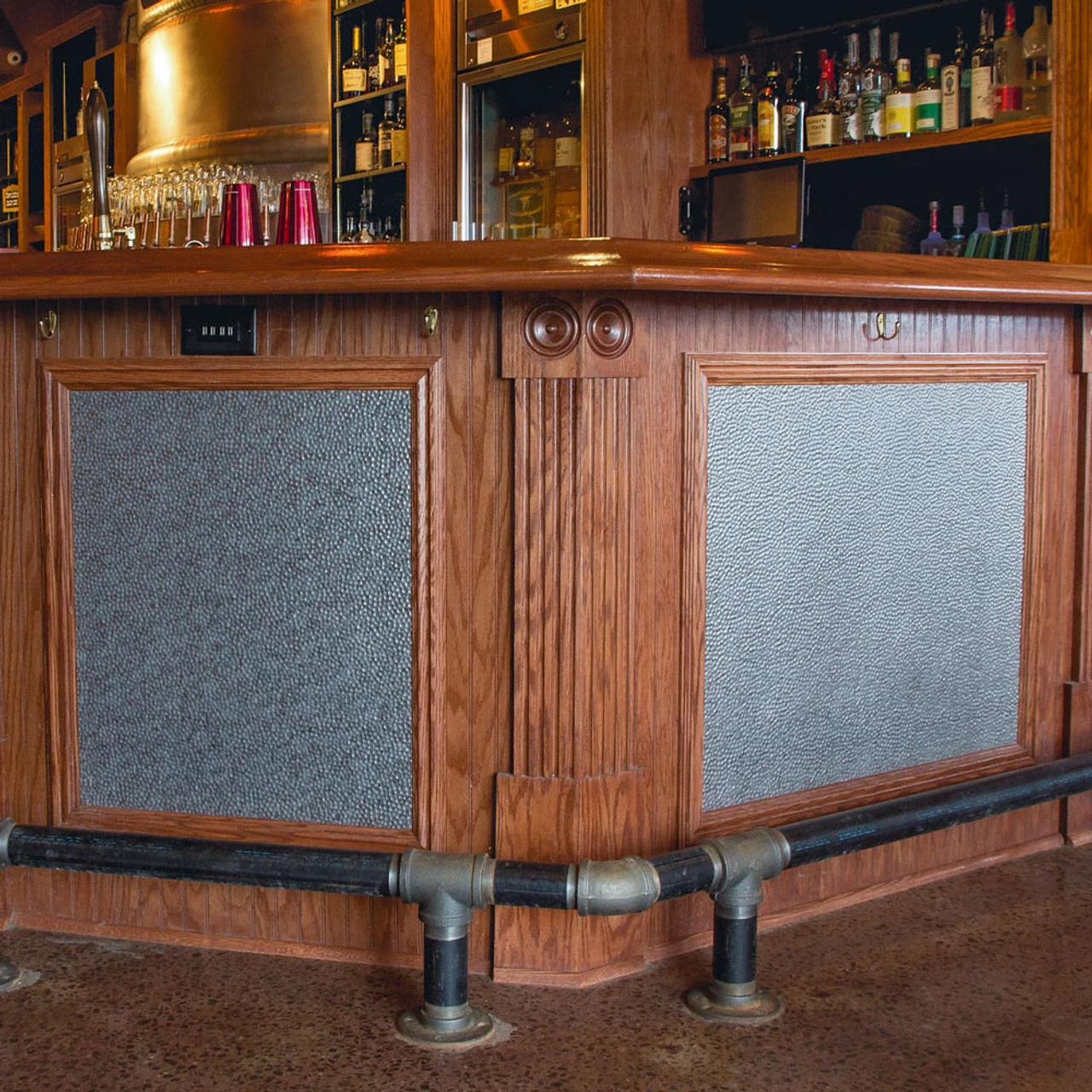

You can add unique character to your space with industrial black pipe bar foot rail and components such as this elbow fitting.

• Matches the finish of Black Industrial Pipe bar foot rail

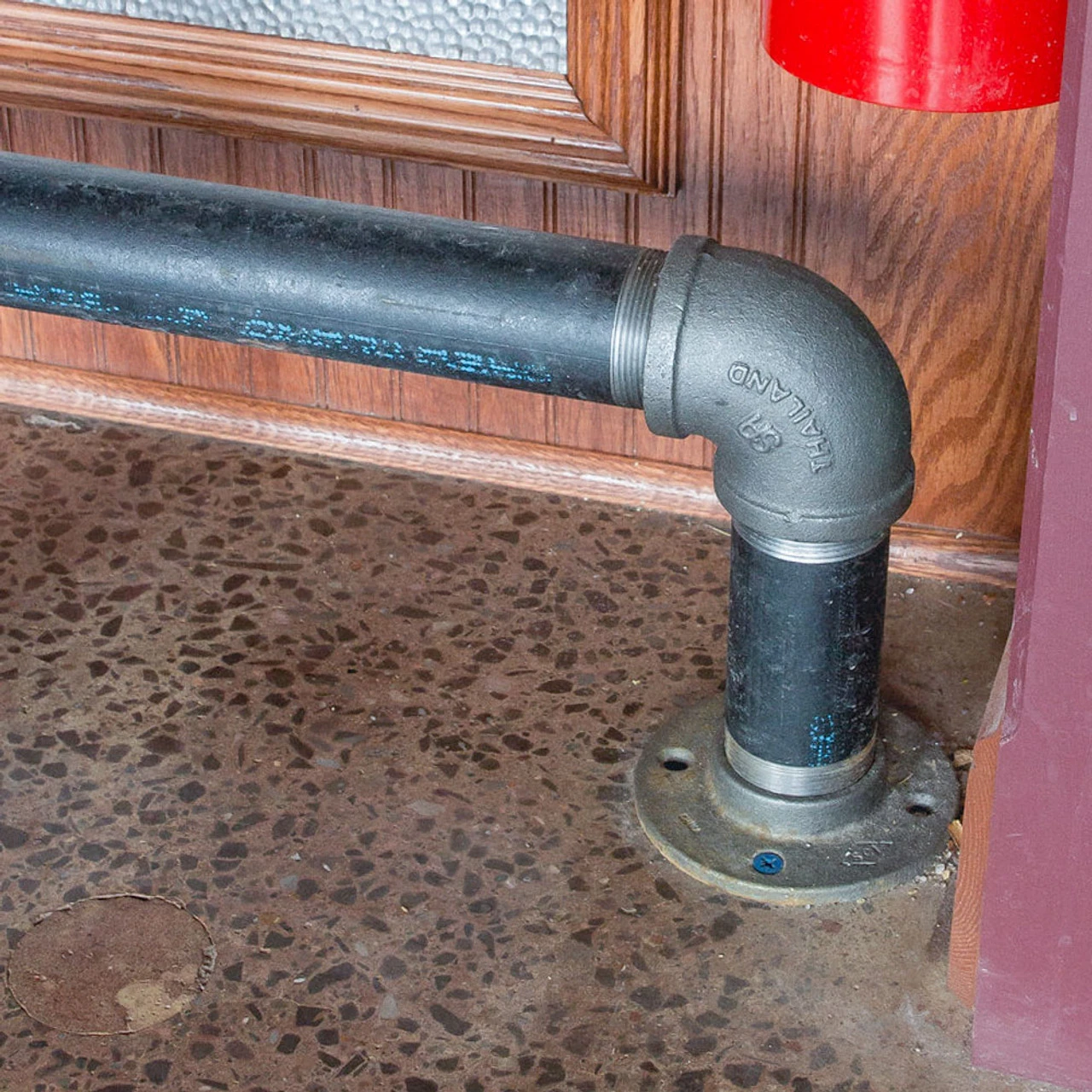

• Allows the Black Pipe Foot Rail to return to the floor, a wall, or turn a corner
• Connector piece can be screwed into this component higher or lower to achieve desired distance from bar or floor

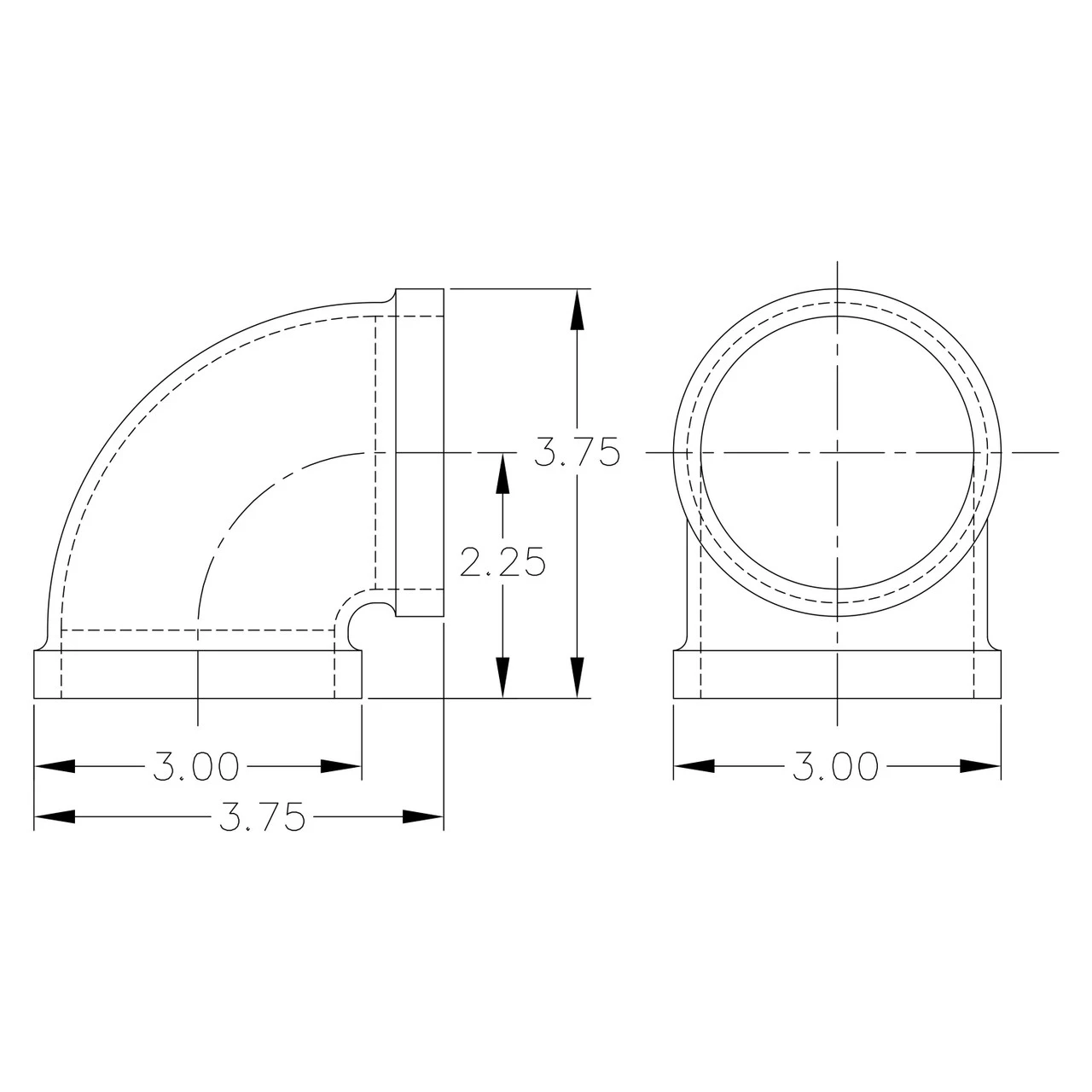

• Height: 3.75″
• Width: 3.75″
• Depth: 3″
• Outer Diameter: 2 3/8″
• Inner Diameter: 2″
