Double Pedestal Draft Beer Tower – Stainless Steel – 3″ Column – Glycol Cooled – 6 To 12 Faucets

If you want to complete your bar with a draft tower that’s built to last, you can’t go wrong with this heavy-duty H-tower that’s capable of dispensing up to 12 beers.

The box and both 3-inch columns are made from 16-gauge stainless steel with a brushed satin finish – making the Double Pedestal Draft Beer Tower equally durable and stylish. When you decide this is the perfect draft beer dispensing option for your bar, you can choose from models offering six, eight, ten, or twelve faucet taps.

This commercial-grade draft beer tower is ready to be attached to a premium to ensure every pour is at the ideal temperature. Pre-installed copper glycol loops come in direct contact with the top and bottom of the shanks. The loops offset from box front for exceptional cold retention without condensation. Finally, the beer lines are also insulated for enhanced efficiency.

For the majority of long draw or commercial draft beer systems, especially those running 6 or more beer lines or draft systems running over 15 feet, a glycol chiller is recommended. This system implements a separate chiller that uses the power of glycol to move beer further distances, while still keeping it cold from keg to tap. Propylene glycol, a non-toxic, food-grade antifreeze, is the main component that’s been used for many years in food-processing systems.

When installed on your bar, the beer tower measures 16 inches tall and between 19-37 inches long, depending on the number of faucets.

You draft beer tower comes fully assembled and comes with beer lines, gaskets, and mounting screws.

• H-style double pedestal draft beer tower with 6, 8, 10, 12 faucets
• Serve up to 12 different beers at your home or commercial bar
• Can be mounted on bar or counter top
• Constructed of heavy-duty stainless steel with brushed satin finish
• Designed for glycol cooling

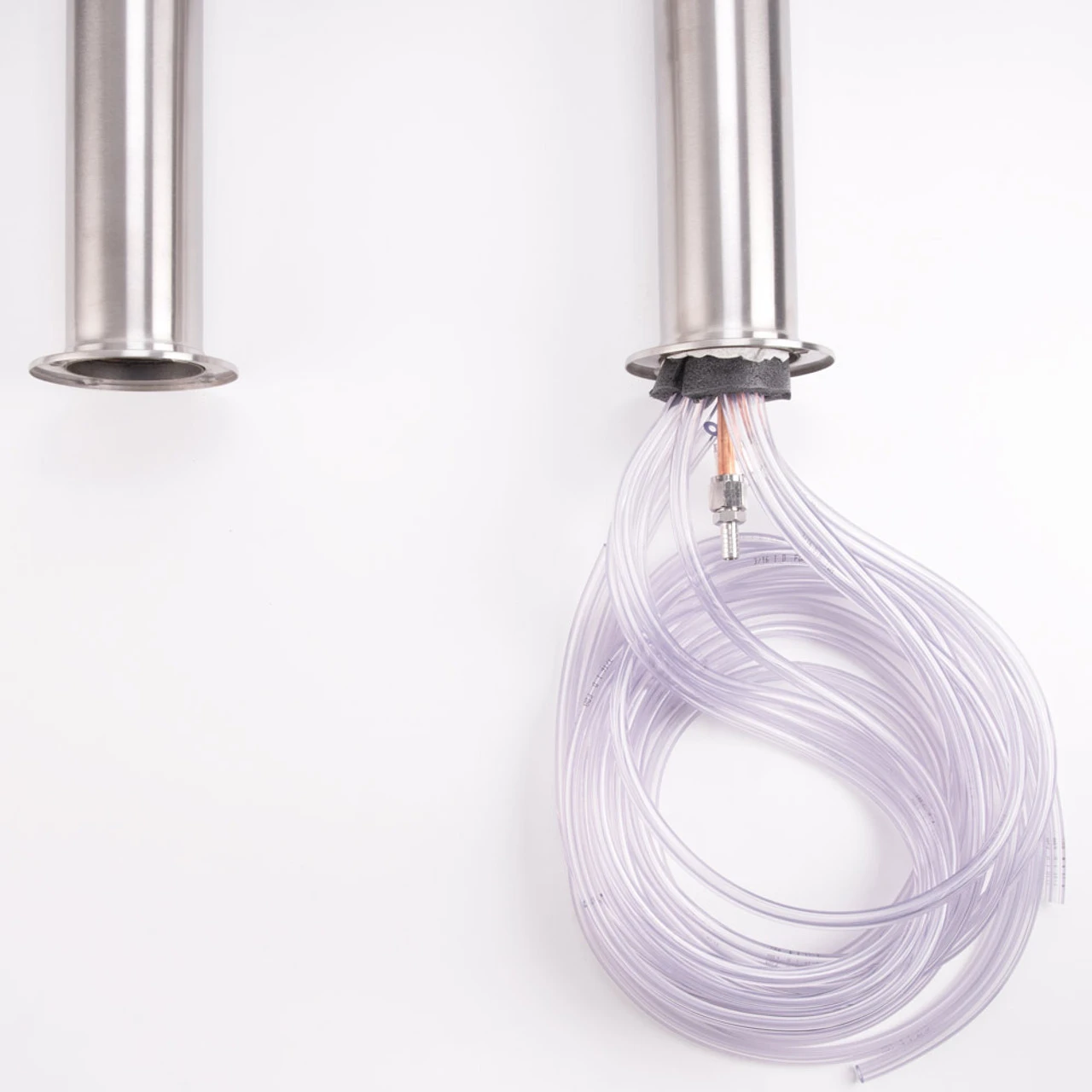

• Copper glycol loops (pre-installed) come in direct contact with the shanks (top and bottom)
• Loops offset from box front for exceptional cold retention without condensation
• Insulated beer lines
• Comes with beer lines and installation hardware

• 3′ pedestal tubes
• Total Height of Assembled Tower: 16″
• Faucet Span: 3″
• Tip of Faucet to Base: 12.25″
• Tower Box Depth: 5″
• Tower Box Height: 4″
• Tower Box Length
• 6 faucet: 19″
• 8 faucet: 25″
• 10 faucet: 31″
• 12 faucet: 37″
• Center to Center of Pedestals
• 6 faucet: 9″
• 8 faucet: 13″
• 10 faucet: 15.5″
• 12 faucet: 18.5″
• Glycol Lines
  • 6 and 8 faucet towers have 2 recirculation glycol tubes
  • 10 and 12 faucet towers have 4 recirculation glycol tubes
• Tower Box & Pedestal Material: 16 gauge stainless steel
• Finish: Satin Stainless Steel
• Free Custom Pedestal Spacing available upon request. Please call for more information
