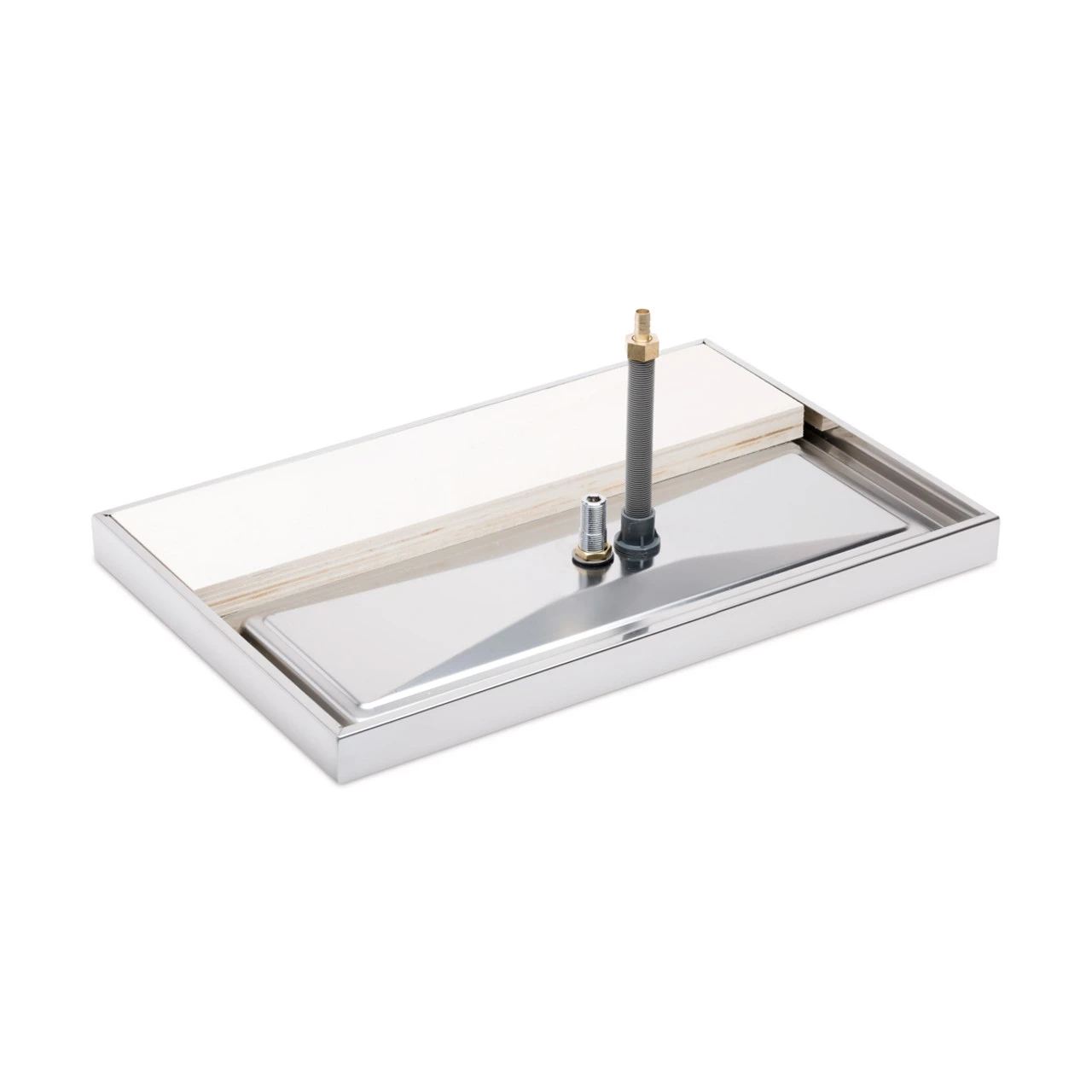

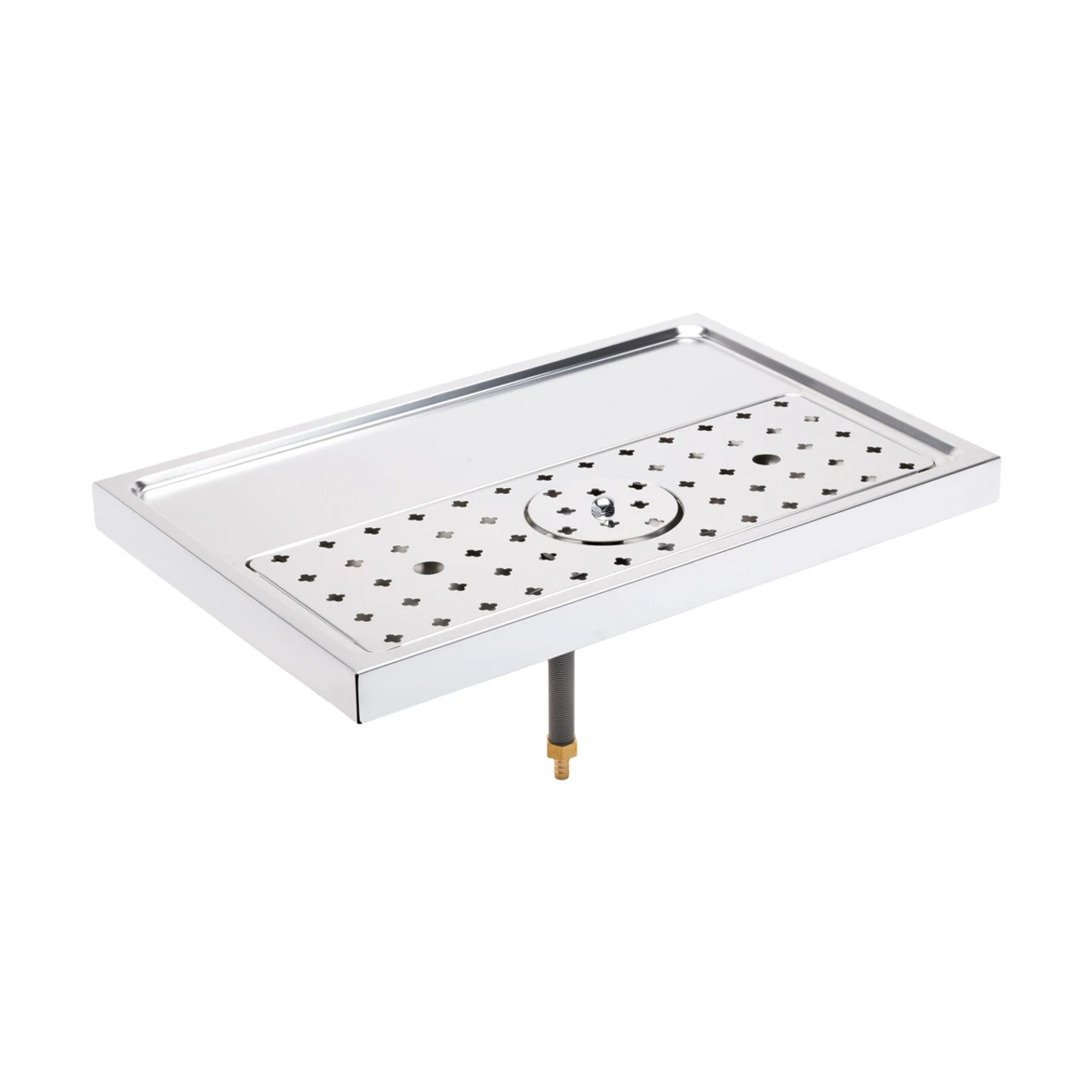

Glass Rinser Tray – 23-5/8 Inch

This stainless steel drip tray helps you serve cleaner beer with a built-in beer glass rinser assembly. The convenient rinser conditions glassware right at the point of dispense to improve the quality of your draft beer, instantly. Simply invert the glass, push down on the sprayer and let the cold water do its job.

A wetted glass improves the pour by encouraging better head retention, while the cold temperature of the water helps to cool the glass. Your tower(s) even mount directly to the seamless bar glass rinser assembly for maximum efficiency. Differentiate your bar from its competitors with this practical, intriguing and stylish piece of equipment.

You’ll need to have a water line accessible, so make sure to check your local plumbing codes!

• Made of tough 18 gauge stainless steel with full plywood under support
• Properly conditions glassware at the point of dispense for a better draft beer experience
• Draft tower can mount directly to the tray to eliminate coring of the countertop (you must bore holes, tray does not come with a hole drilled)

You Will Need to Install:
In-line water regulator set at 30 PSI from the street water supply
In-line one way check valve (prevents pressure drop which can cause leaking)
In-line shut-off for the rinser system (this must be turned off nightly)
A 45 1/2” O.D. barb for the drains, if line is not hard plumbed into the system

• Rinser Tray supports up to 4 draft faucets (draft towers sold separately)
• Overall dimensions: 23-3/4”L x 15-3/4”W
• Drip area: 20-7/8”L x 7-1/4”W
• Tower mount area: 21-1/2”L x 6”W
• Threaded drain outlet: 3/4”
• Water inlet: 1/2” barb
