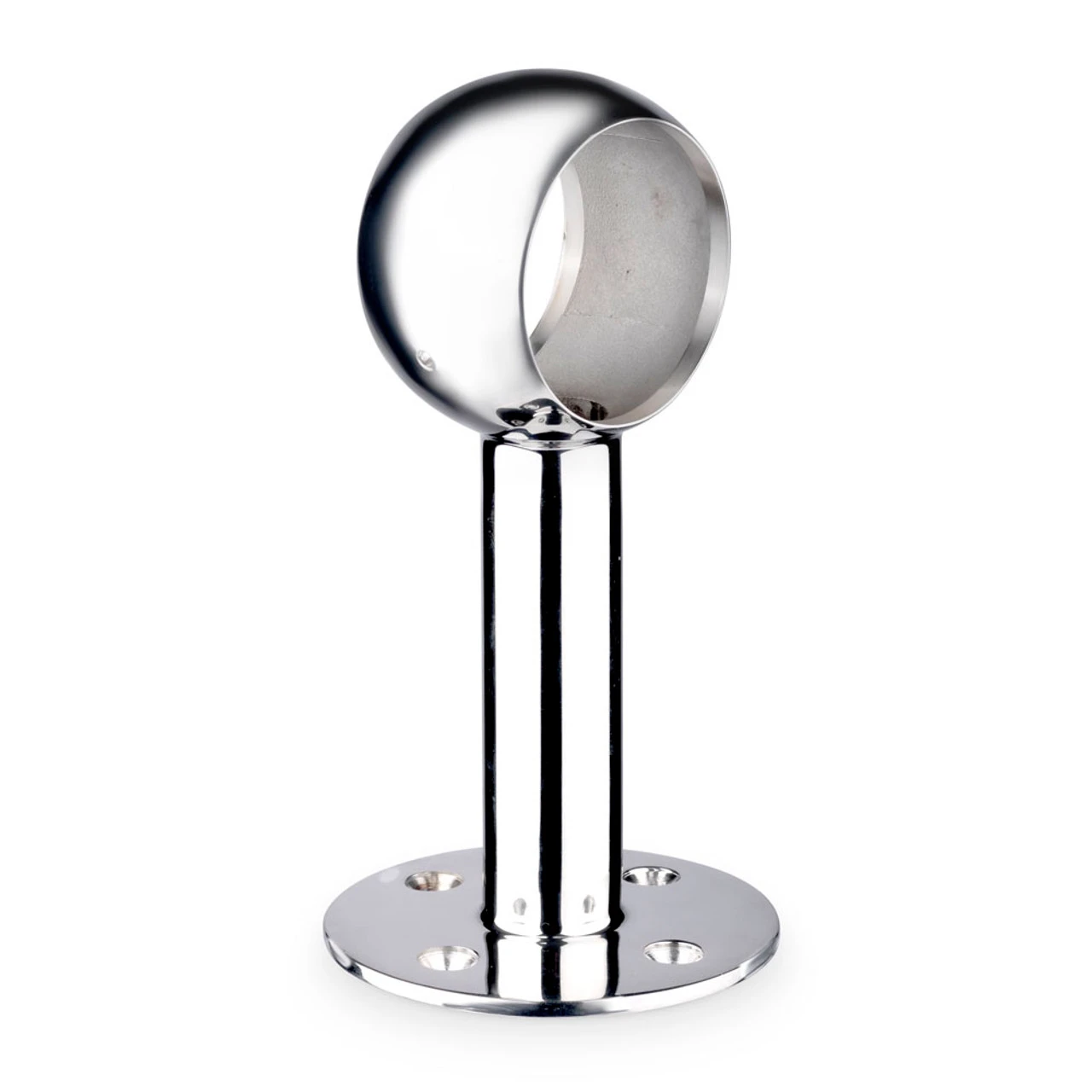

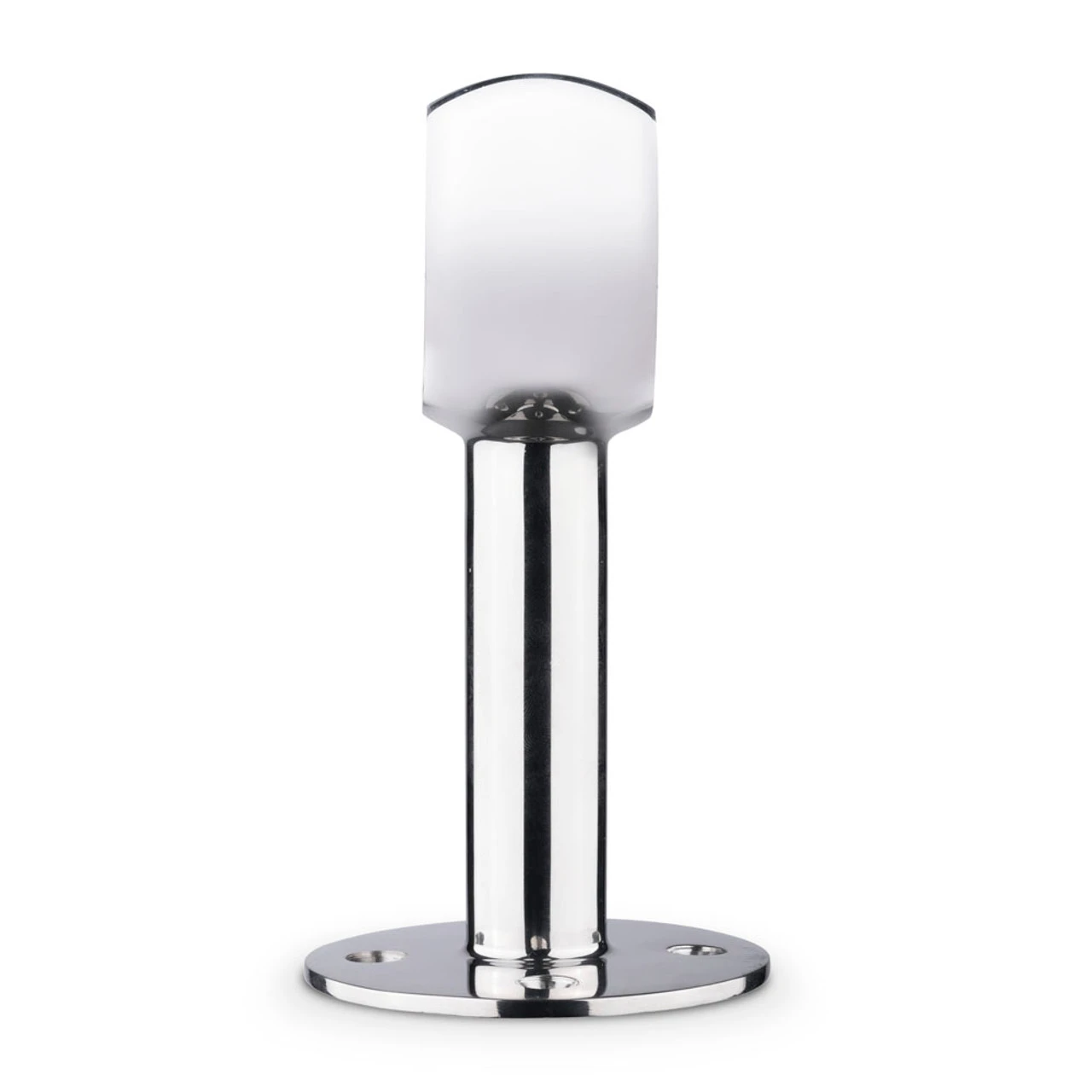

Rounded Center Post Bracket – Polished Stainless Steel – 2″ OD

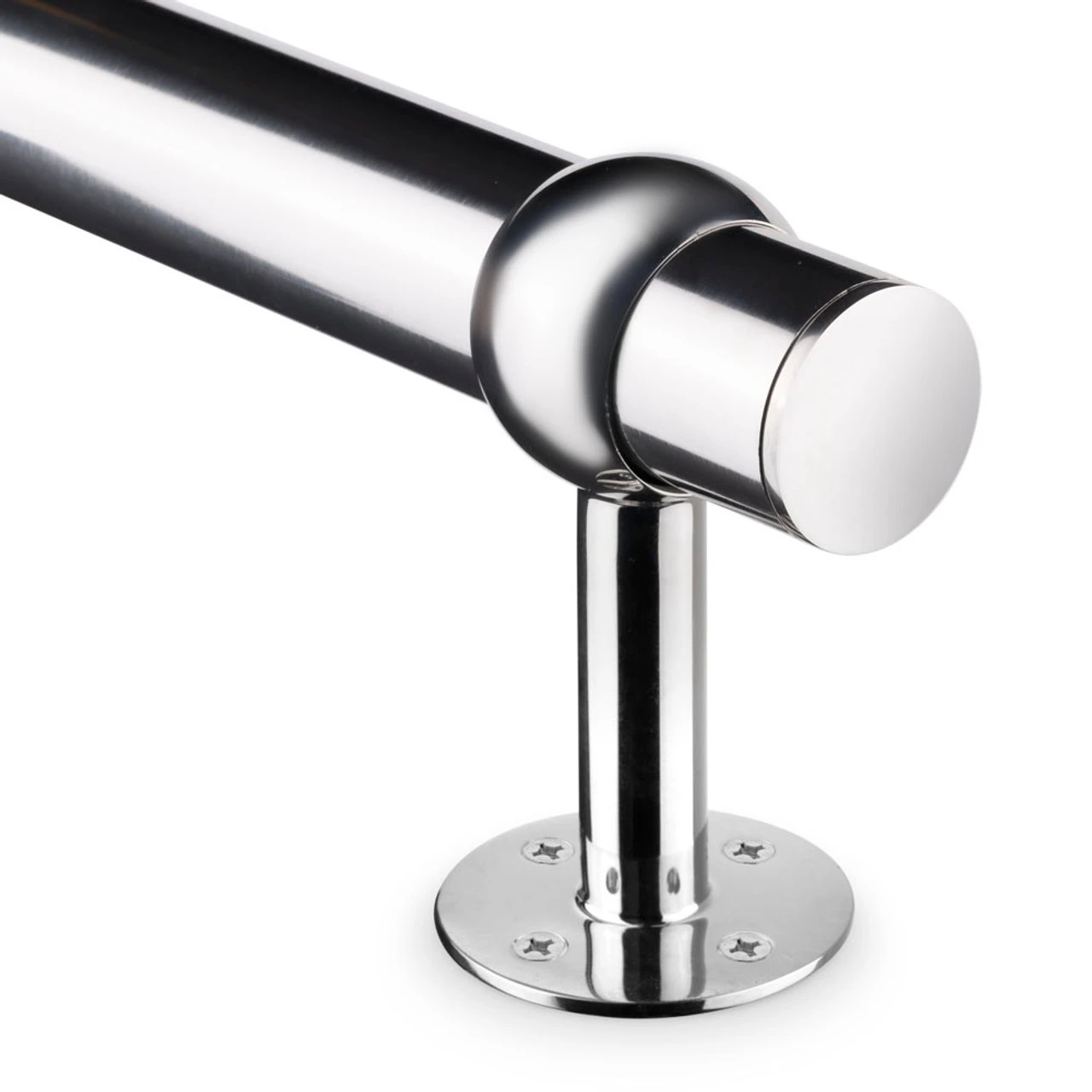

Rounded center post brackets are a stylish and sturdy option for supporting metal bar rail tubing for foot rail or handrail. Each post can be mounted directly to your floor, wall or bar facing, which makes it easy to plan your project and install your bar rail tubing.

This rounded center post bracket is made from stainless steel with a polished finish, and will precisely match your .

When installed, the bar foot rail will sit approximately 4.75″ from the floor to the center of the tubing. Since there is only one support point with these rounded center post bar brackets it is recommended to place one at each end of the tubing, plus one for every 3-foot increment. Be sure to measure precisely where to place the screws ahead of time.

For help deciding which bracket will work best for your bar project, check out our for more information on each of the options.

Installation instructions:

1. Measure & mark holes for mounting screws.
2. Attach brackets to floor with mounting screws.
3. Secure tubing to bracket by fastening set screws through hole in the bottom of the bracket.

For more detailed instructions on how to install bar rail read our .

Care & Maintenance:

Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to on how to properly prep, clean & maintain all bar rail finishes.

• Made of stainless steel with polished finish
• For use with 2″ Outside Diameter bar rail tubing
• Bracket foot mounts to floor (or wall/bar face for hand rail)
• Brackets should be used at both ends of rail tubing, plus one at every 3′ increment
• Mounting screws included
• Suitable for indoor use only (Clear coat protection available )

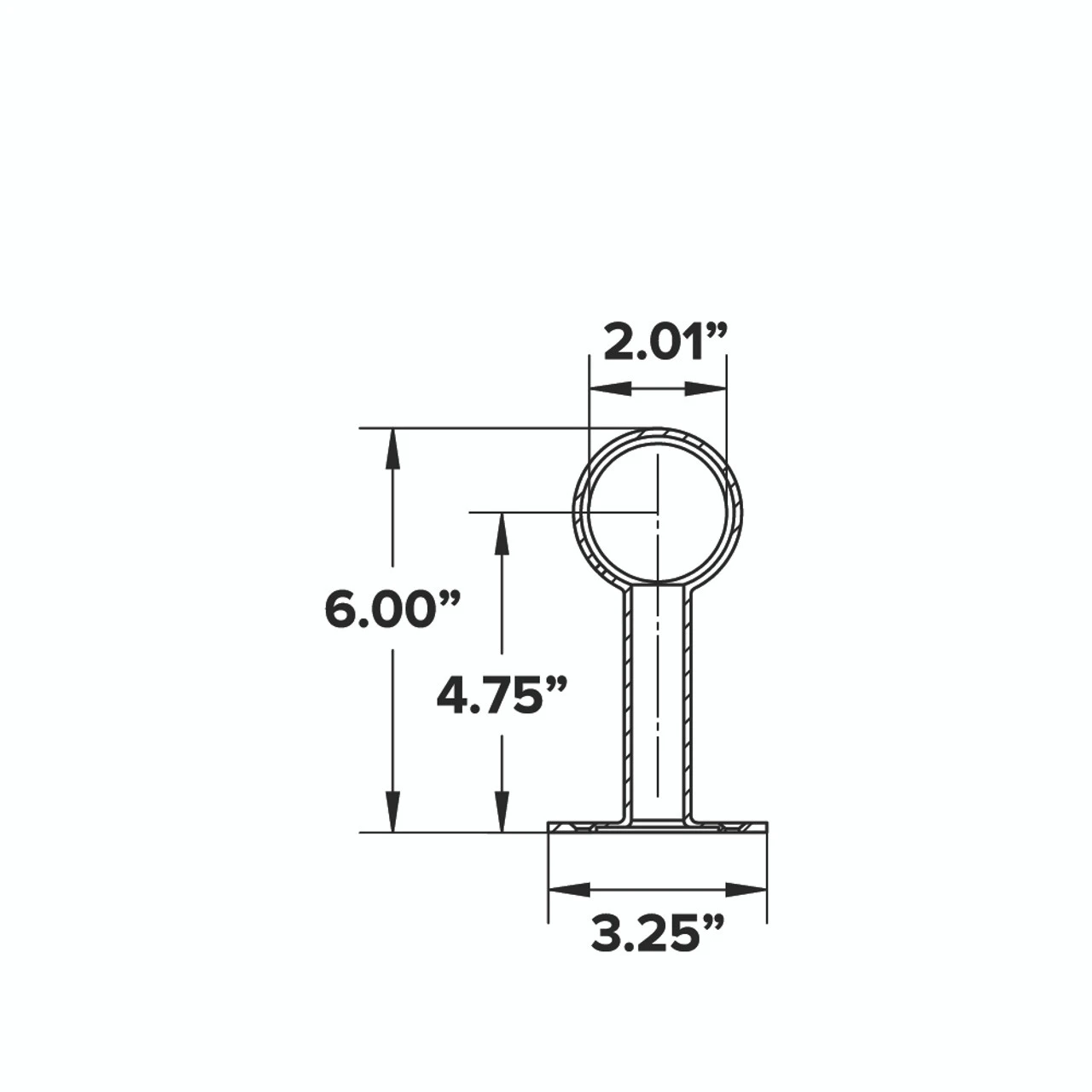

• Bracket Width: 3.25”
• Bracket Height: 6.00”
• Opening Diameter: 2.01” (for 2” OD tubing)
• Floor to Center of Tubing (Center Point): 4.75”
