Single Faucet Jockey Box – 50′ Coil – Complete Kit Without Cooler

Drill a few holes in an old cooler, add these components, and VOILA! You have a mobile draft dispensing system that’s perfect for camping, events, and parties.

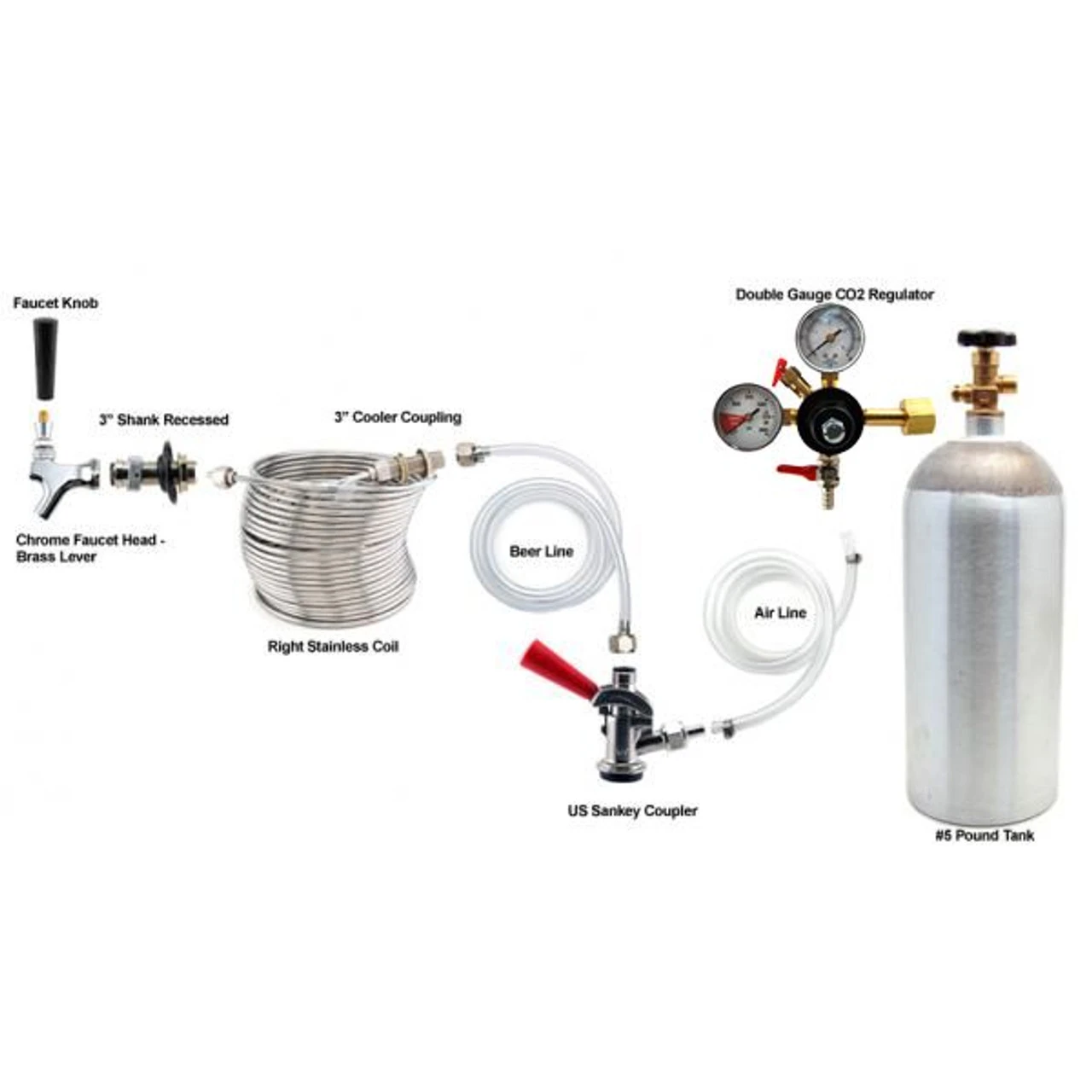

In no time flat, you’ll be pouring delicious draft beer at parties, tailgates, picnics, and catered events that call for something classier and easier to use than a hand-pumped keg. This jockey box kit includes a 50′ stainless steel coil, faucet with tap handle, beer and air line jumpers with connectors, CO2 air tank, CO2 regulator, a Sankey keg coupler, shank, and cooler coupling. The only parts you’ll need are the cooler and the keg.

To use, first drill holes in the old cooler and install the cooler coupling in the back and beer shank in the front. Make an ice bath for the coils of ice cubes and water. Set up your jockey box no more than 10 feet from your ice cold keg. Attach the beer line from the top of the keg coupler to the cooler coupling, and the air line from the outlet barb on the CO2 regulator to other side of the coupler. Adjust the keg regulator to 40-60 PSI based on your setup. Keep both the jockey box coils and cold throughout to avoid foaming (no more than 40° F).

Be sure to wash out your lines and coils after each use, just as you would normally . Check out our for more information on completing your setup.

Please note: If you don’t have an old cooler, don’t worry. We offer several other varieties of kits, including ones with coolers.

• Complete kit for converting a cooler into a jockey box
• The only additional parts you’ll need are an old cooler and a keg
• Dispense beer without a hand pump
• Stainless steel coil keeps beer cold and will not corrode over time

• Coil Dimensions: 50’L x 9 3/4” Diameter
• Coil Tubing Dimensions: 5/16“Outside Diameter
• Shank Dimensions: 3″L
• Cooler Coupling Dimensions: 3″L
• Beer/Air Line Dimensions: 5’L
• Air Tank Weight: 5 lb (empty)
