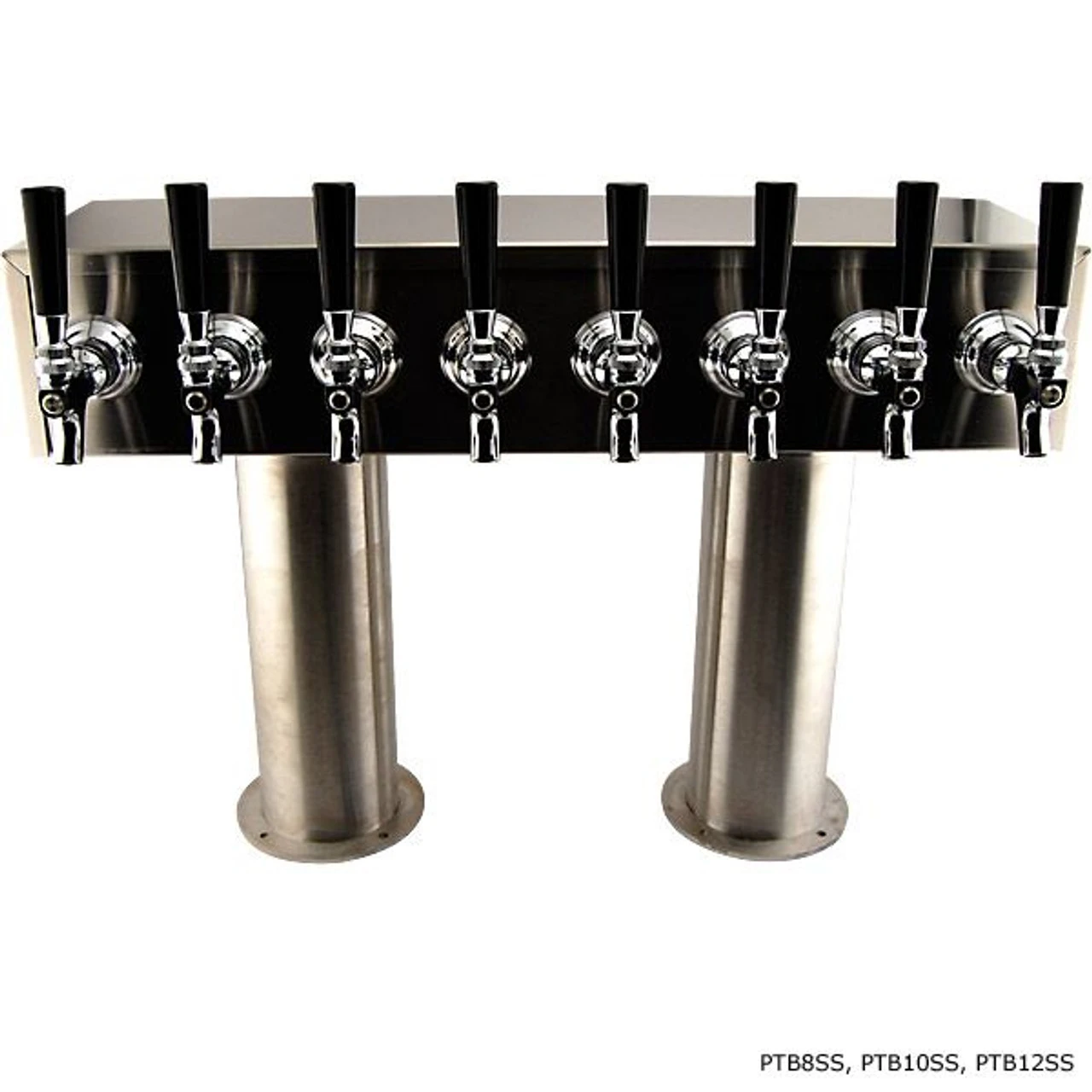

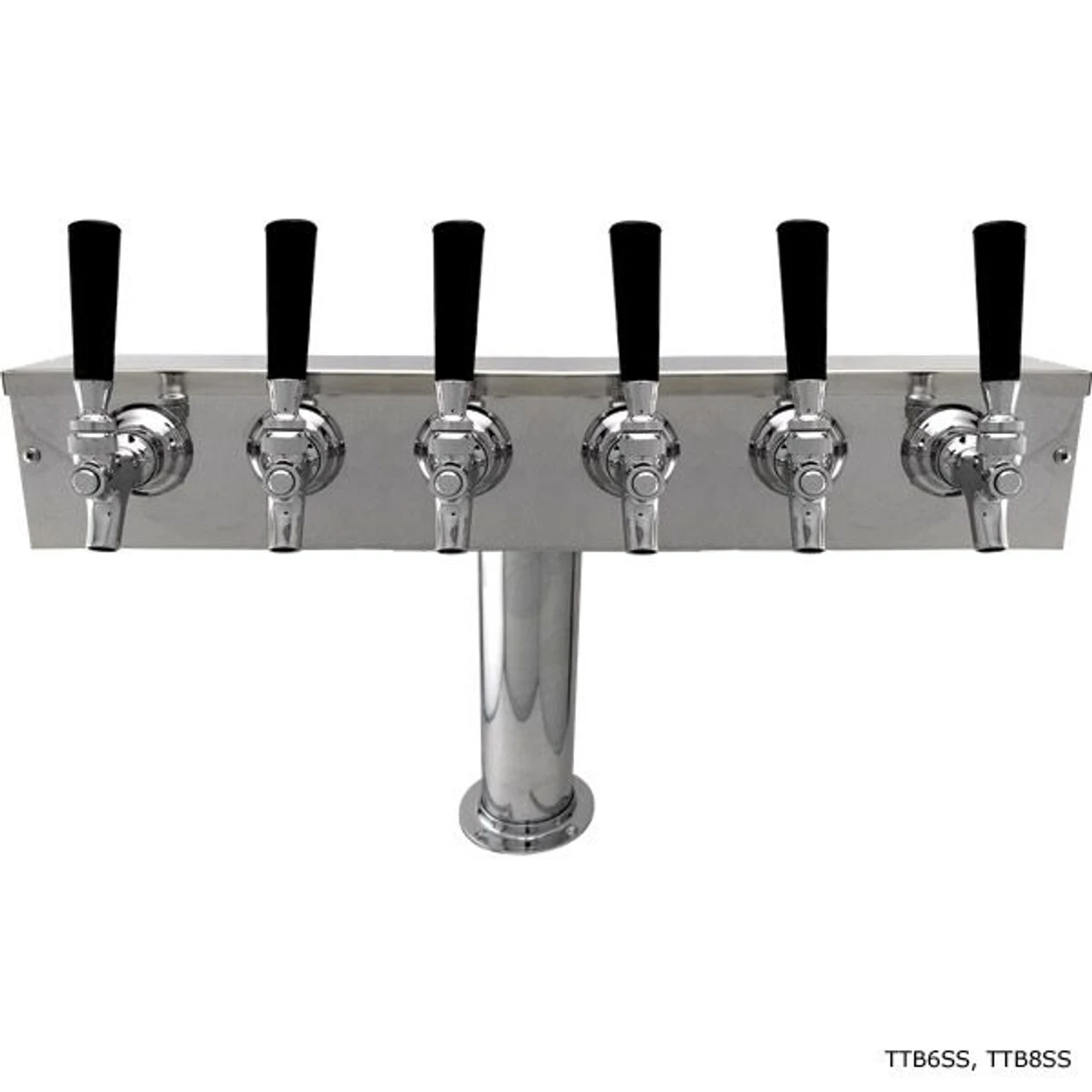

“T” Style Pedestal Draft Beer Tower – Stainless Steel – 4″ Column – Glycol Cooled – 4 To 8 Faucets

Combining durable construction, glycol cooling, and your choice of four to eight faucets, this T-tower is the commercial-quality draft tower you’ve been searching for.

Made from 16-gauge stainless steel, it’s a draft beer tower made to withstand heavy use. The brushed satin finish will look incredible in your bar and complement your existing decor. You can customize your tower with four, five, six, or eight premium chrome faucets with brass stems.

This beer tower is designed for glycol cooling, which uses a separate refrigeration system (instead of air cooling) to keep your beer at the optimal temperature of 38° from the keg all the way through the faucet. The included copper glycol loops come in direct contact with the top and bottom of the shanks. Plus, the loops offset from the box front for exceptional cold retention without condensation.

For the majority of long draw or commercial draft beer systems, especially those running 6 or more beer lines or draft systems running over 15 feet, a is recommended. This system implements a separate chiller that uses the power of glycol to move beer further distances, while still keeping it cold from keg to tap. Propylene glycol, a non-toxic, food-grade antifreeze, is the main component that’s been used for many years in food-processing systems.

The column is 4 inches in diameter with ½-inch thick insulation for enhanced temperature efficiency. When mounted on your bar, the tower is 17 inches tall, and between 13 and 25 inches wide, based on the number of faucets.

For your convenience, the draft beer T-tower comes fully assembled and includes a 6 ft. beer line and hex nut for each faucet. Installation is easy and no mounting gasket is required.

With this item, you’ll receive beer lines and hex nuts for each faucet, specially machined ¼ in. bore shanks with built-in tail pieces, and mounting screws. The only component pictured that is not included are faucet knobs, which are sold separately.

Please note: after you select your model and number of faucets, each T-tower is made to order. Please allow up to two weeks for shipping.

• T-style draft beer tower with choice of 4, 5, 6, or 8 faucets
• Can be mounted on bar or counter top
• Constructed of durable 16-gauge stainless steel with brushed satin finish
• Chrome-plated brass faucets with brass stems
• Used with a glycol cooling system for precise control of beer temperature
• Copper glycol loops come in direct contact with the shanks (top and bottom)
• Loops offset from box front for exceptional cold retention without condensation
• 4 in. stainless steel column
• ½ in. insulation in tower and pedestal tubes
• Specially machined ¼-in. bore shanks with built in tail piecesv
• Comes fully assembled for easy installation
• Each T-tower made to order – shipping time up to two weeks

• 4″ pedestal tubes
• Total Height of Assembled Tower: 17″
• Faucet Span: 3″
• Tip of Faucet to Base: 13″
• Tower Box Depth: 7″ D
• Tower Box Height: 5″ H
• Tower Box Length
  • 4 Faucet: 13″ L
  • 5 Faucet: 16″ L
  • 6 Faucet: 19″ L
  • 8 Faucet: 25″ L
• Center to Center of Pedestals
  • 4 Faucet: N/A
  • 5 Faucet: N/A
  • 6 Faucet: N/A
  • 8 Faucet: 13″
• Glycol Lines
  • 2 recirculation glycol lines
